CAMVATE FEELWORLD FW568 V2 5.5 inch DSLR Camera Field Monitor with Waveform LUTs Video Peaking Focus Assist Small Full HD 1920x1152 IPS with 4K HDMI 8

C3194-FW568V2
Quantity:
-
+
(4 available)
Please select the information you wantX
  • Description
  • Advanced Features
  • Reviews
  • camera field monitor

    Note: Choose New is FW568 V2 with Waveform, LUTs, 1920x1152 resolution; If You Choose Used Version, It Is the FW568 without Waveform, LUTs Version, 1920x1080 resolution

    Let Your Video Shooting Become Easier

    FEELWORLD has been committed to providing the comprehensive broadcast monitoring and solutions for the professional filmmakers. When you’ve put together rigs made up of powerful equipment, you want to be able to see shots that so much work has now gone into getting to that point. As a filmmaker you need to pay special attention to the visual aspect in order to capture every moment of emotion. It’s not easy to evaluate your shot solely through your camera’s built-in monitor, especially if the entire unit is constantly rotating on a gimbal/ stabilizer, the camera on crane rig jib, One of the biggest issues when you are doing low-angle/ high angle shot is monitoring what you’re shooting. FEELWORLD monitor is ideal tool for you to monitor the scene since you can install it where you can conveniently see it.

    Compatible Battery: Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530, series and Canon LP-E6 (Note battery not include, need purchase sperate)

    FAQ:

    1. Can't turn on the monitor

    Make sure to use the standard 12V 1.5A power adapter to connect the monitor. If power is supplied by battery, please check if the battery is fully charged.

    2.Have noise during recording

    Long press “<“ button and turn down volume to near zero, can aviod have not nosie during recording. Long press ">" is increase the volume.

    3.The monitor display " no signal"

    1)Try another HDMI cable.

    2)And please try to connect monitor HDMI to your computer, try if the monitor have signal?

    3)Change the camera output singal, confirm the monitor input signal whether support the camera output signal.

    4. The monitor display "Play and Slide show" when you coonect the HDMI signal format

    It is need setting your camera. You need to switch on ‘secondary monitor‘ in the HDMI output settings and switch off ‘auto resolution’ you then need to pair ‘monitor resolution’ with ‘record resolution, and it is work.


    feelworld fw568 wavefrom lut

    FEELWORLD FW568 Update to FW568 V2 Version with Waveform and 3D LUT

    Note: Choose New is FW568 V2 with Waveform, LUTs, 1920x1152 resolution; If You Choose Used Version, It Is the FW568 without Waveform, LUTs Version, 1920x1080 resolution

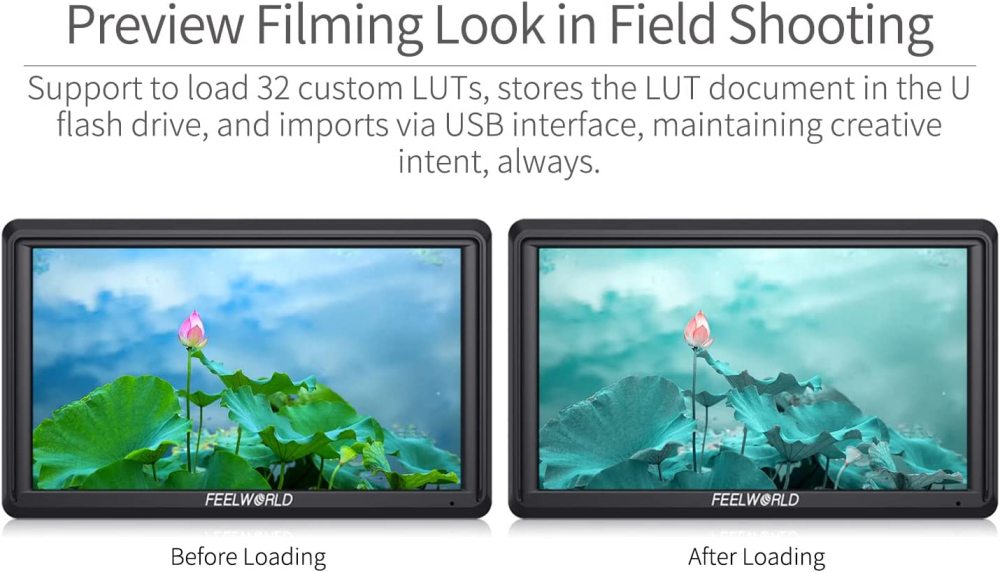

  • Dear friends, thank you very much love and support the FEELEWORLD monitor, in order to improve user experience, we update the FW568 monitor to FW568 V2 with waveform and 3D LUT function, support load 32 custom LUTs. Preview film look in field

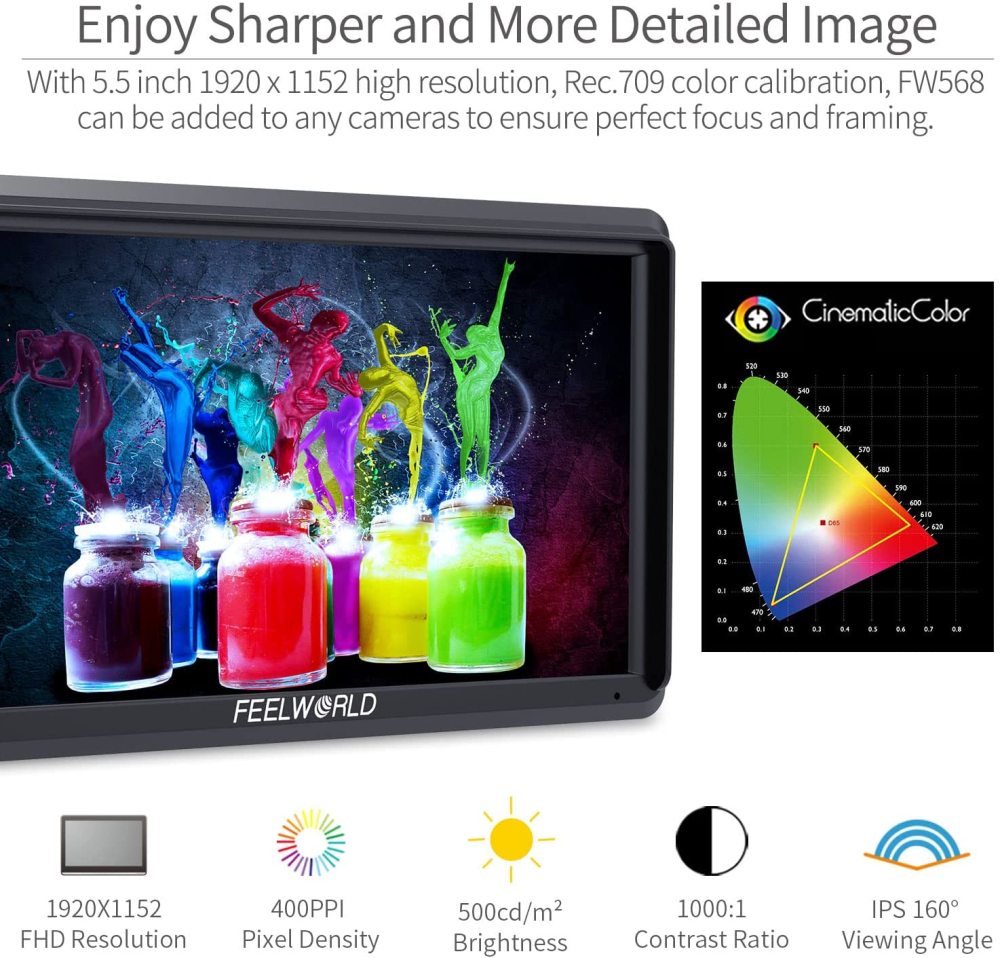

  • The FW568 screen resolution is1920x1080 update to FW568 V2 resolutions 1920x1152.
  •


    5.5 inch camera field monitor

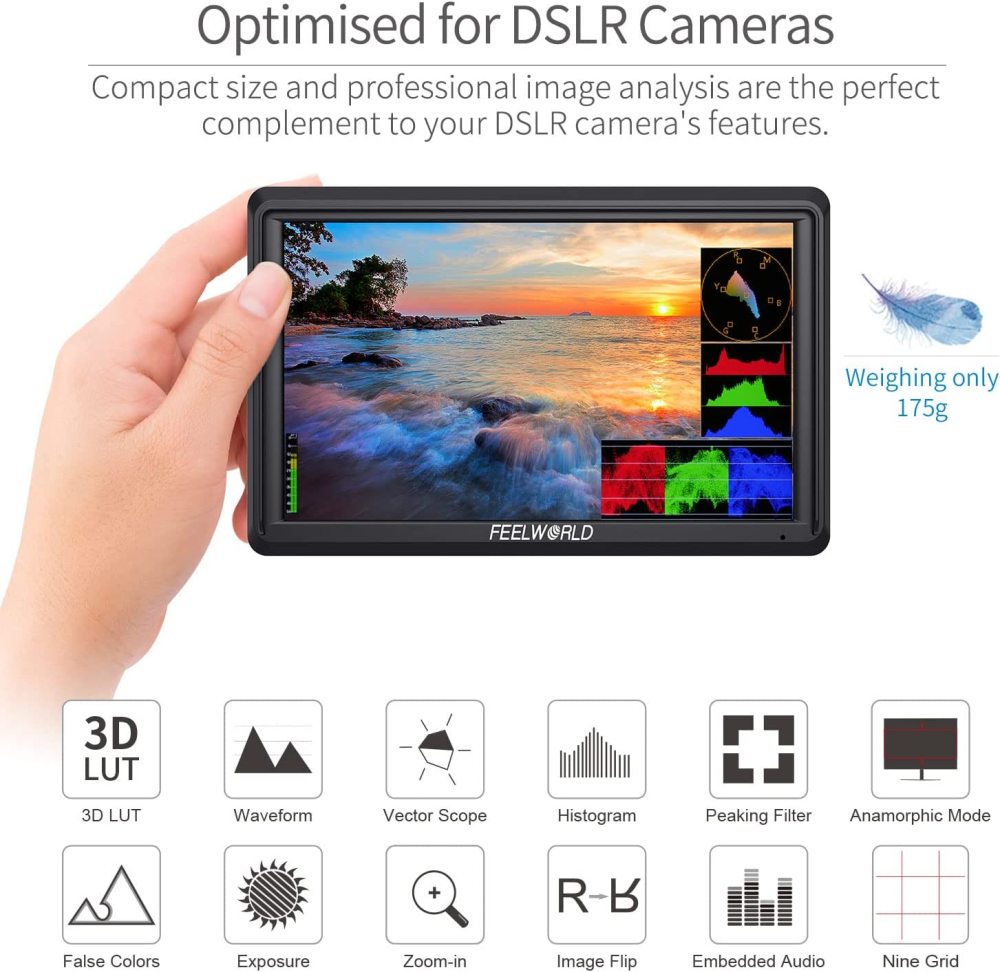

    Accurately expose and focus every shot.



  • Histogram
  • Embedded Audio
  • Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
  • False Colors
  • Zebra Exposure
  • Nine Grid
  • Scan Mode (Under Scan, Over Scan)
  • Zoom (4x,9x,16x), Anamorphic Mode (1.3x,2.0x,2.0x mag)
  • Pixel to Pixel
  • Center Marke, Safe Area (80%,85%,90%,93%,96%,2.35:1)
  • Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
  • Marker Color (Red,Green,Blue,White,Black)
  • Check Field (Red/Green/Blue/Mono)
  • Image Flip (H, V, H/V), Image Freeze, Zoom All U/D & L/R Zoom
  •

    More detail about these features, you can see the video.

    camera monitor hdmi

    gimbal monitor

    4k camera monitor

    Filming

    Video Shooting

    Vlog

    4k field monitor

    hdmi dslr monitor

    4k monitor camera

    Accurate Color Reproduction

    FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

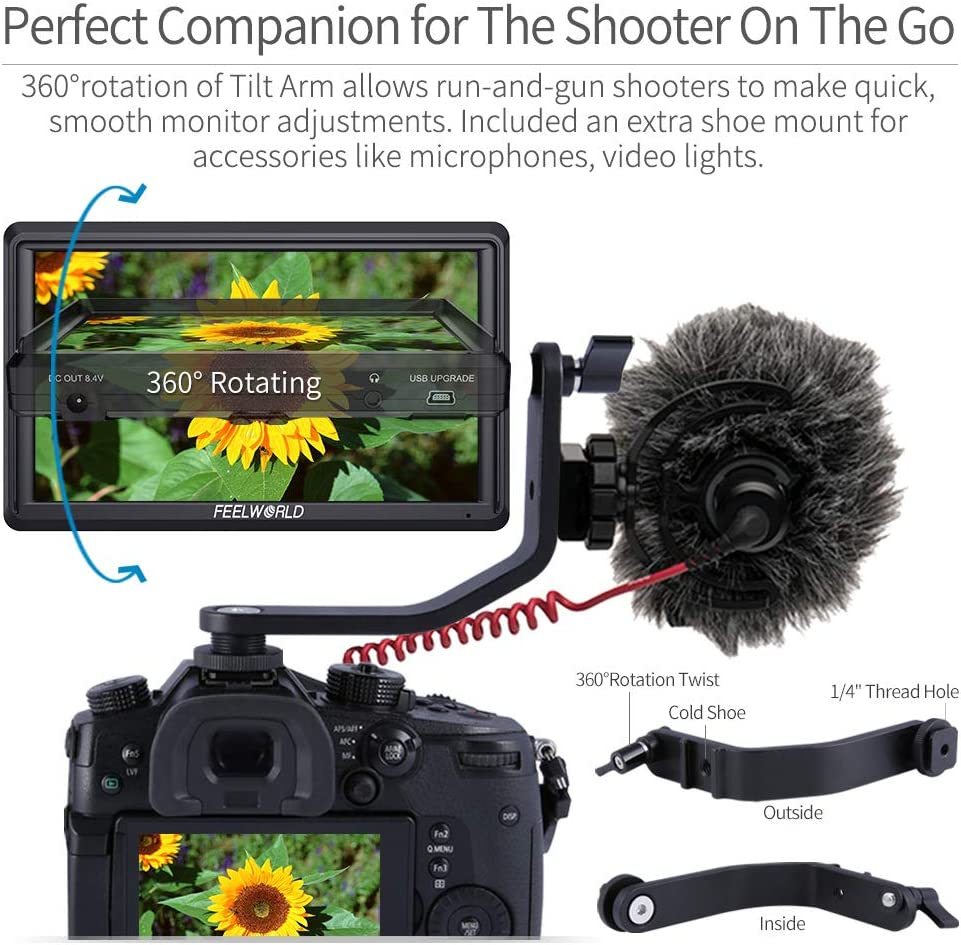

    Flexible Install Both on Camera and Gimbal

    FW568 equipped with one removeable 1/4 screw, you can install at button and side.

    Not only you can install it on a handheld stabilizer, but also you can mount itsecurely attach it to the top of your camera as the ultimate HD viewfinder! If you install it on the bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen!

    HDMI Output Application

    Connect to Wireless Transmitter, transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.


    dslr monitors

    More Detail about FW568

    Display Spec.



  • Screen Size: 5.5" IPS
  • Resolution: 1920x1080 pixels
  • Pixel Pitch: 0.0639 (H) x 0.0213 (W) mm
  • Aspect Ratio: 16:9
  • Brightness: 500cd/m²
  • Contrast Ratio: 1000:1
  • Backlight: LED
  • Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
  •

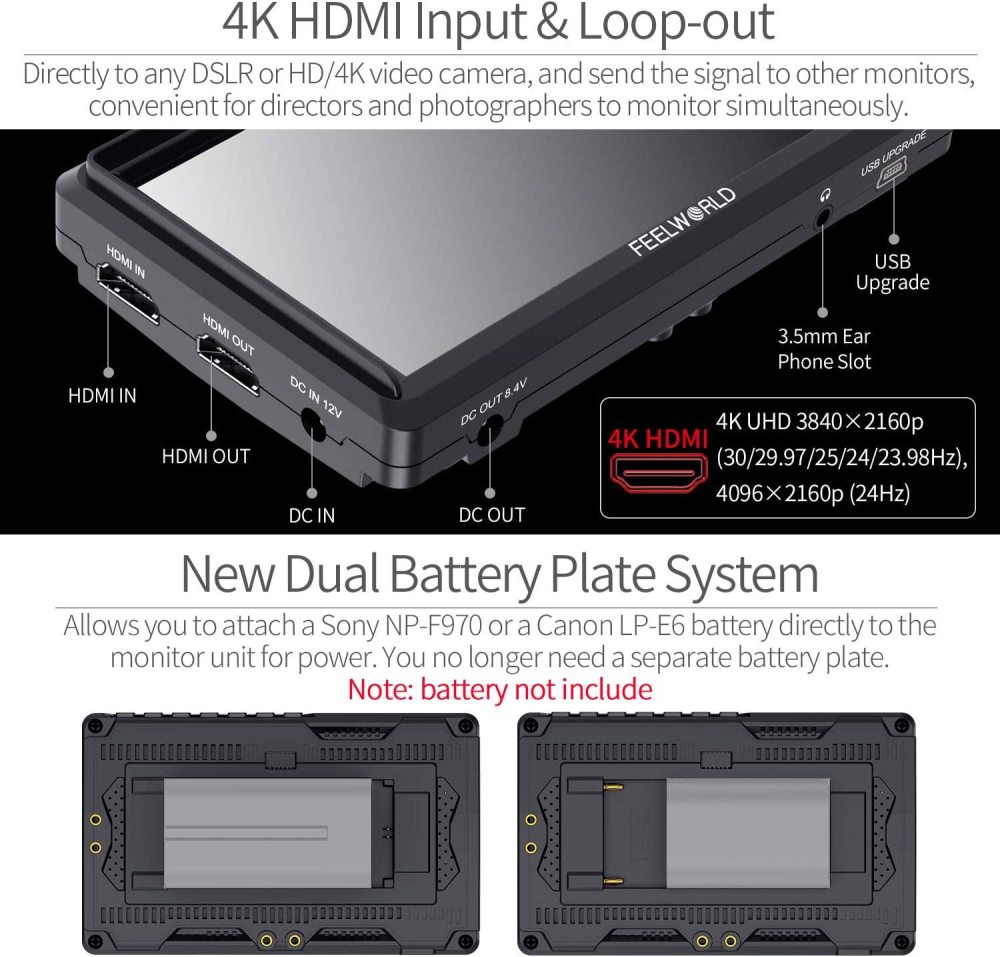

    Input/ Output



  • Input: 1 X 4K HDMI

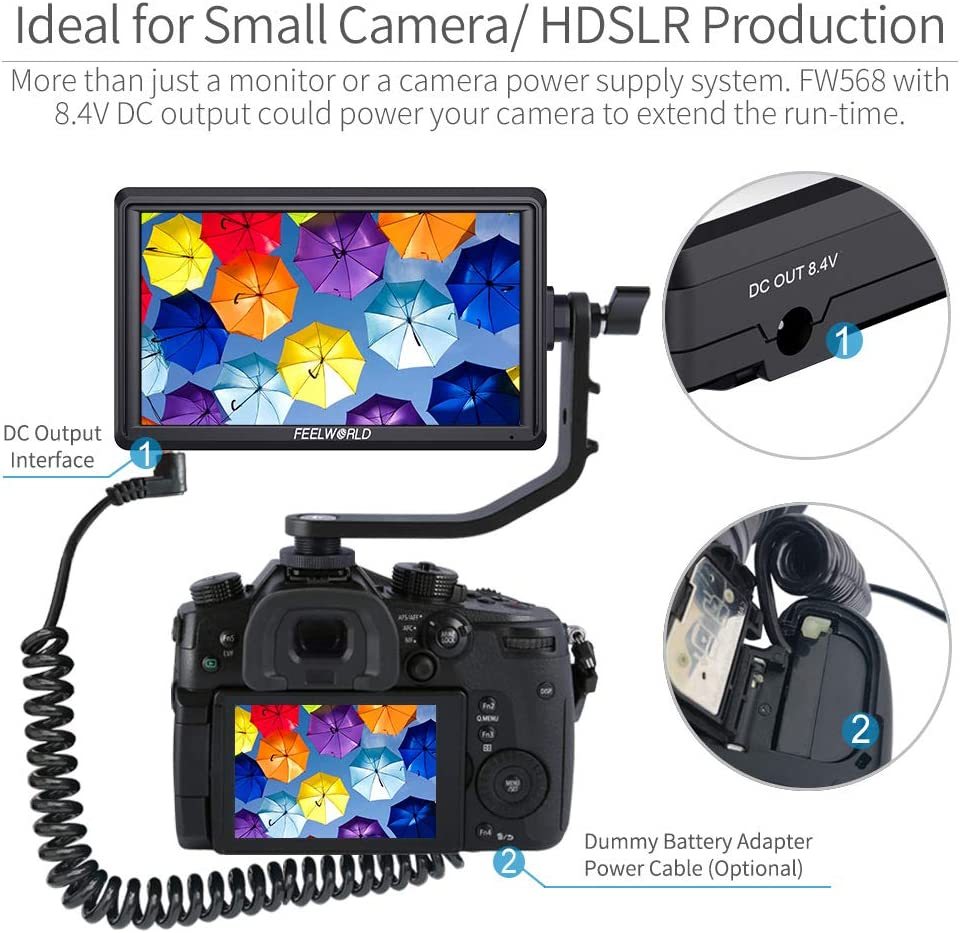

  • Output: 1 X 4K HDMI, DC Output
  • Audio: Stereo Headphone
  • HDMI Input/ Output Support Format:
  • 480i/576i/480p/576p
  • 1080i (60/59.94/50)
  • 720p(60/59.94/50/30/29/25/24/23.98)
  • 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
  • 4K UHD 3840×2160p(30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
  •

    General



  • Input Voltage: DC7~24V
  • Power Consumption: ≤8W
  • Power Connector: DC
  • Working Temperature: -20°C~55°C
  • Storage Temperature: -30°C~65°C
  • Install Way: One removable ¼-20 thread points
  • Unit Size: 142Lx87.2Hx27.5D (mm)
  • Unit Weight: 175g
  •

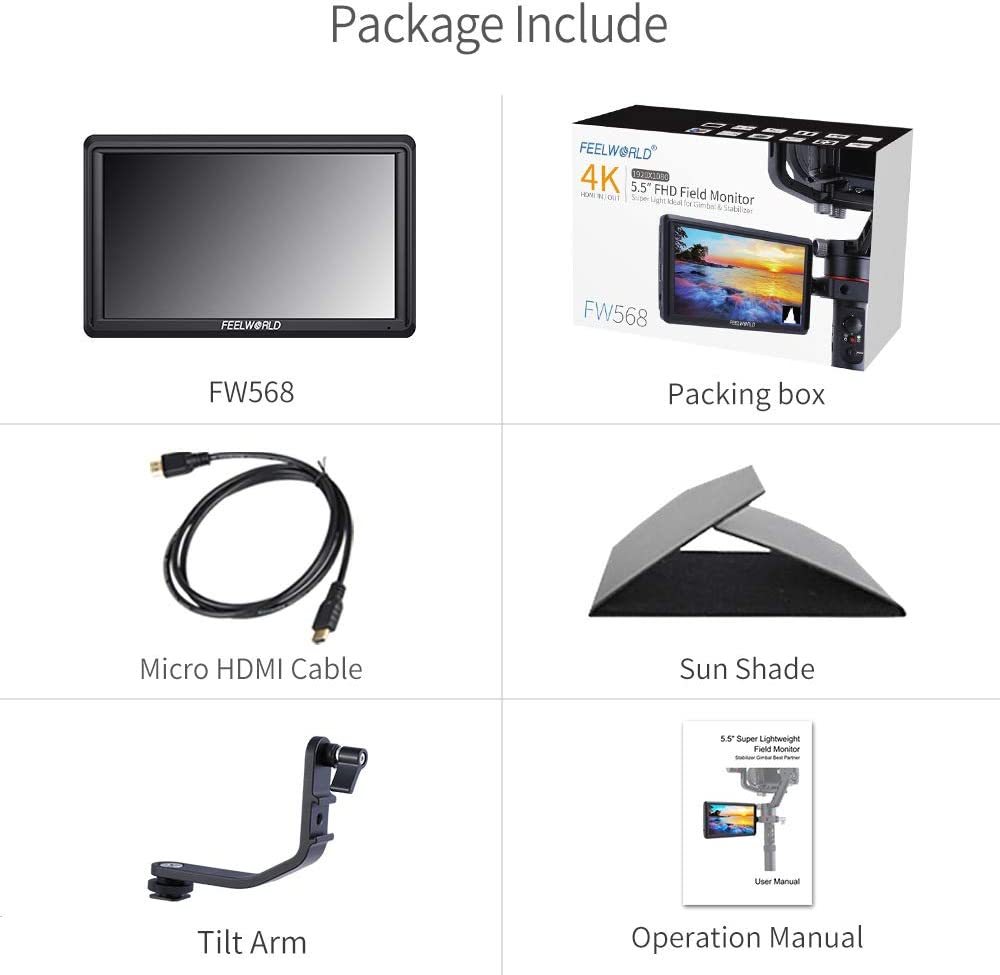

    Package Include

  • 1 x FW568 Monitor
  • 1× Micro HDMI Cable
  • 1× Sunshade
  • 1× Tilt Arm
  • 1× Manual
  •
