Product Highlights
• Cinerig Base for Mirrorless, DSLR Cameras

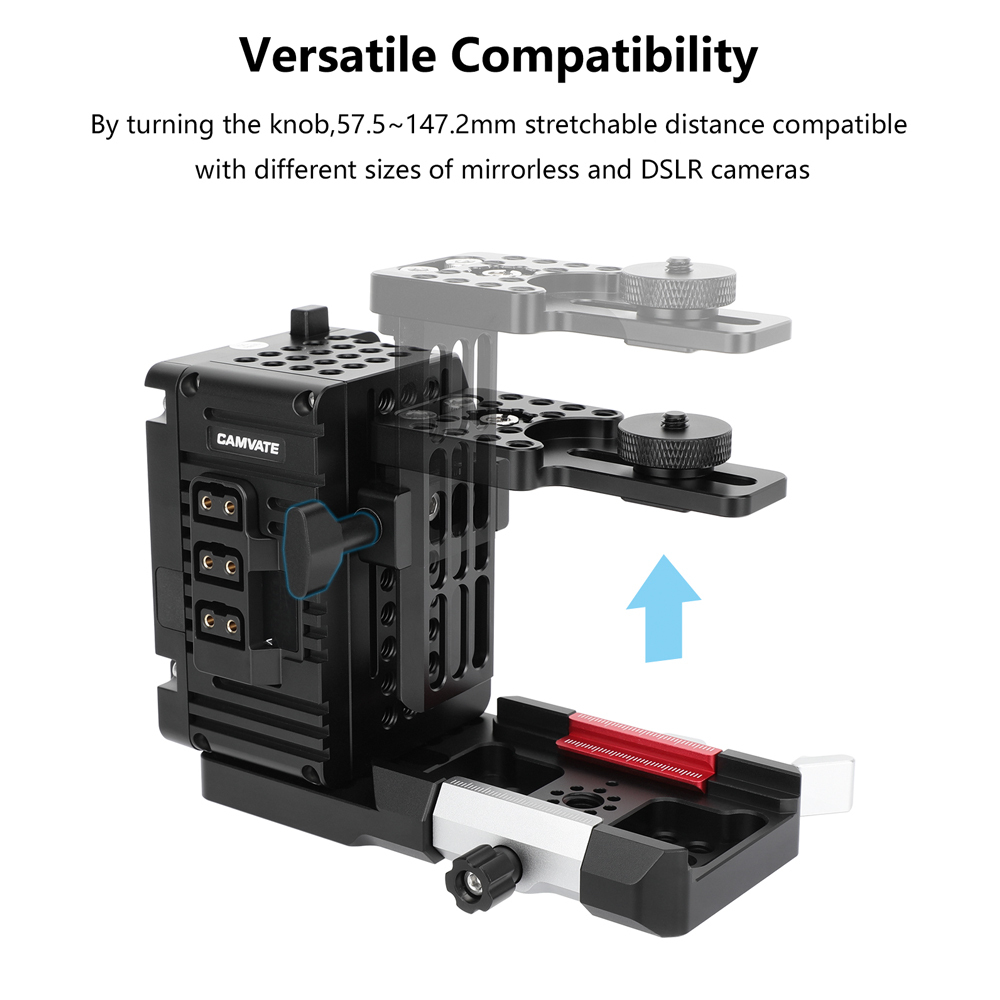

• Height Adjustable from 2.3 to 5.8"
• V-Mount Battery Plate with 1 D-Tap Output
• D-Tap Splitter with 3 Outputs (12.8 to 16.8V, 8A Max Total)
• Top Handle with ARRI-Style Anti-Twist Mount
• Top Plate with Hot Shoe Mount Adapter
• Lever-Lock Arca & Manfrotto Compatible Clamp Base
• 1 x Arca-Type Quick Release Plate

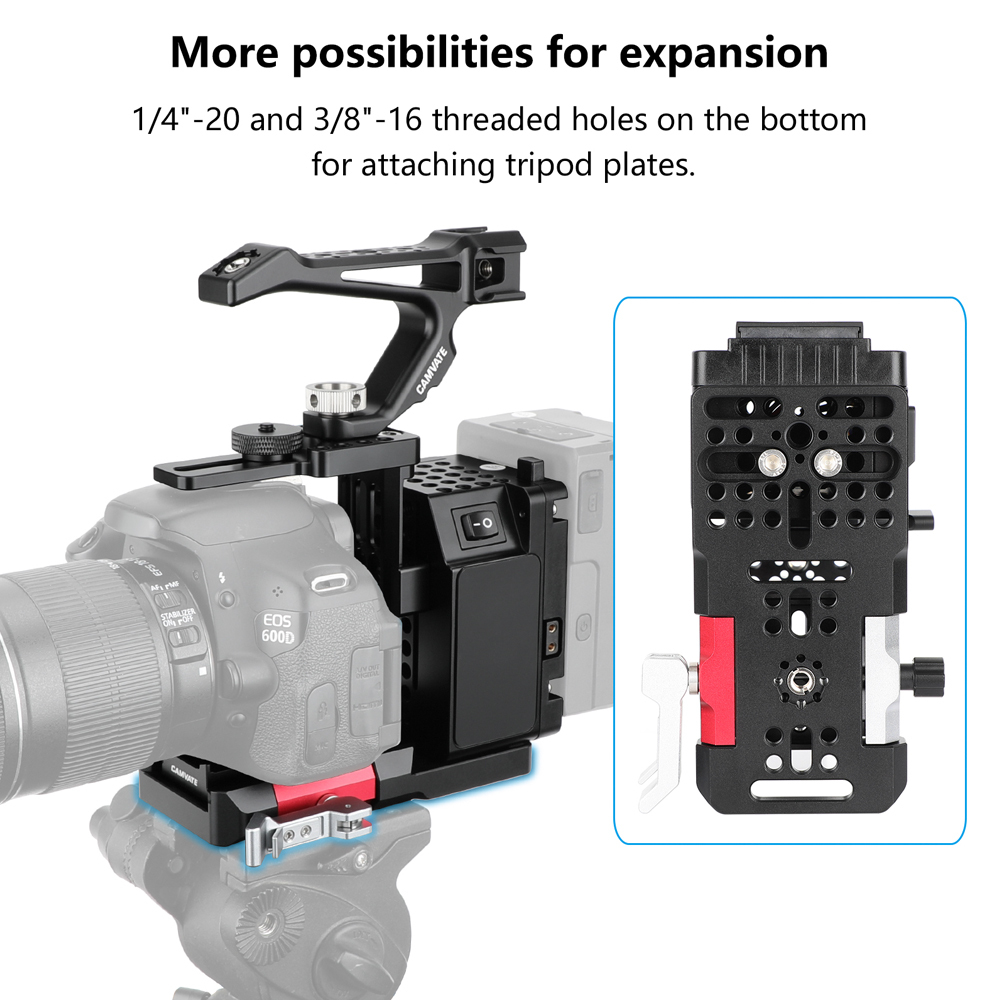

• 1/4"-20 Camera Screw,1/4"-20 & 3/8"-16 & Anti-Twist Threads

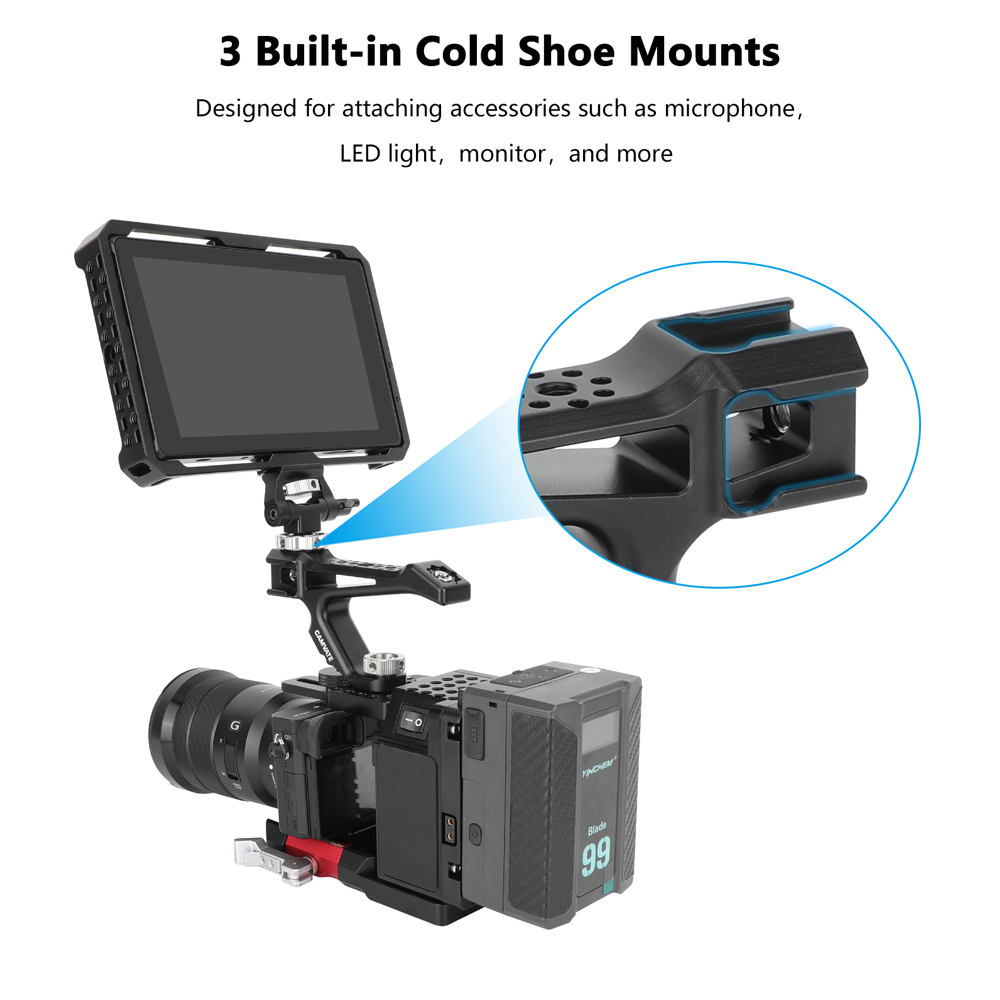

• 3 x Integrated Shoe Mounts on Top Handle
• Built-In Voltmeter Display, On/Off Power Switch
• 3/8"-16 to 1/4"-20 Bushing Adapters Included
• Aluminum & ABS Construction
Product Description
Mount this cineback-style supply module camera cage to your digital cinema camera or mirrorless camera body, for enhanced filmmaking. The height-adjustable rig enables you to adjust it to fit your gear as it can expand from 2.3 to 5.8" in height. You can adjust the height via a thumbscrew. Secure the top plate into the hot shoe, and quick release plate into the tripod socket. Carry your rig and perform low-angle shots with the dedicatedly designed top handle. The rig features a V-mount battery plate which can accept V-mount battery for longer run time, as well as a D-tap splitter with 3 outputs to dispatch power to your camera, external monitor, microphone and other device when combined with a D-tap to dummy battery, D-tap to USB-C with power delivery, or D-tap to DC cable. A convenient built-in LCD display monitors and informs you of the system voltage. A power switch is provided to cut down all power delivery from the V-mount battery to avoid unnoticed drain. Multiple cold shoe mounts, 1/4"-20 and 3/8"-16 anti-twist threads allow you to attach additional accessories. The rubber pad on left side protects the camera screen when closed.
Note that the cameras such as Sony A1 and A7R IV have a fixed tilting screen so the screen will be blocked by this cinema rig. View the menu on an external monitor using info display.
Net Weight: 1.005 kg

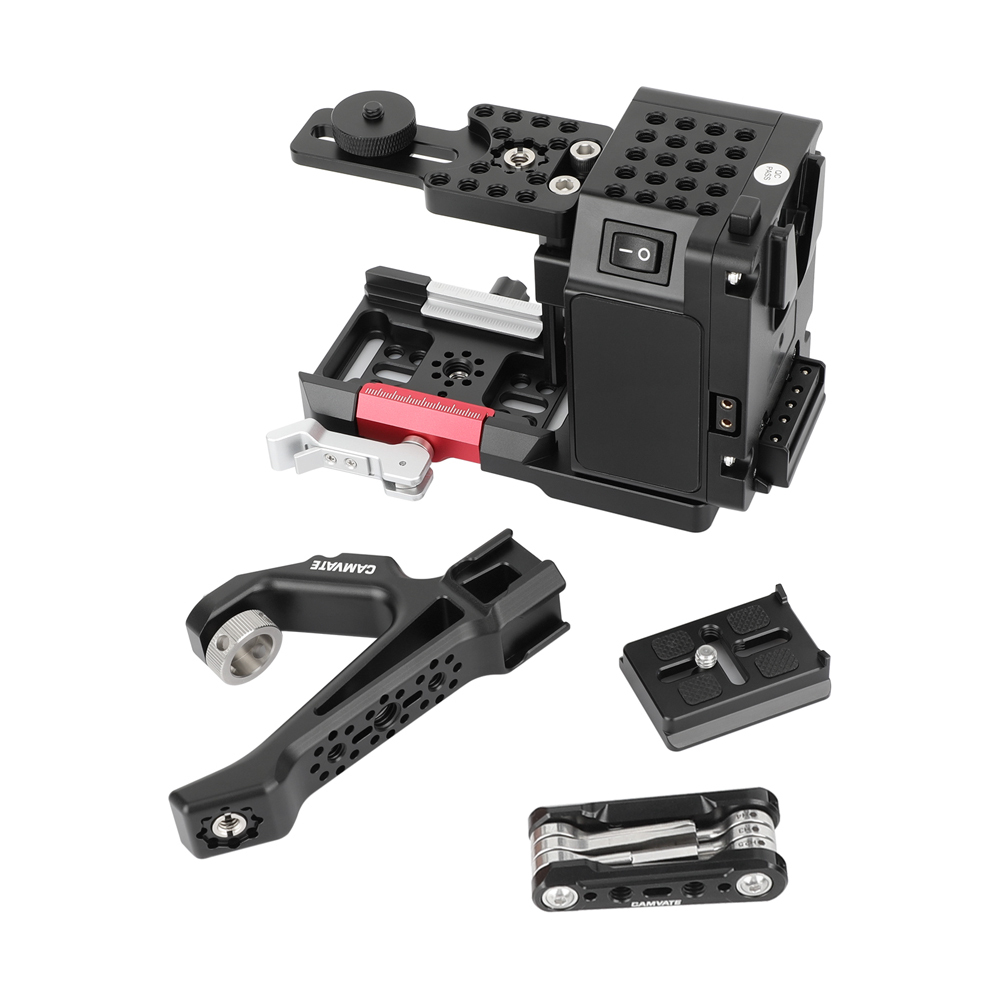

Package Included:
1 x Height-Adjustable Expansion Module Camera Cage with Top Handle
1 x Multifunctional Mini Tool Kit
