CAMVATE L-Shaped Bracket with V-Mount Power Adapter and Manfrotto-Type QR Plate

C3161
Quantity:
-
+
(98 available)
Please select the information you wantX
  • Description
  • Advanced Features
  • Reviews
Product Highlights
• V-Lock Power Supply Splitter with Quick Release
• Manfrotto-Type Quick Release Plate Pack
• Multipurpose Cheese-Type Plate
• 1/4"-20 & 3/8"-16 Mounting Holes
• 5V USB and 14.8V D-Tap Outputs
• 12V and 7.2V DC Barrel Outputs
• LP-E6 Dummy Battery Adapter
• DC Cables Included


Product Description

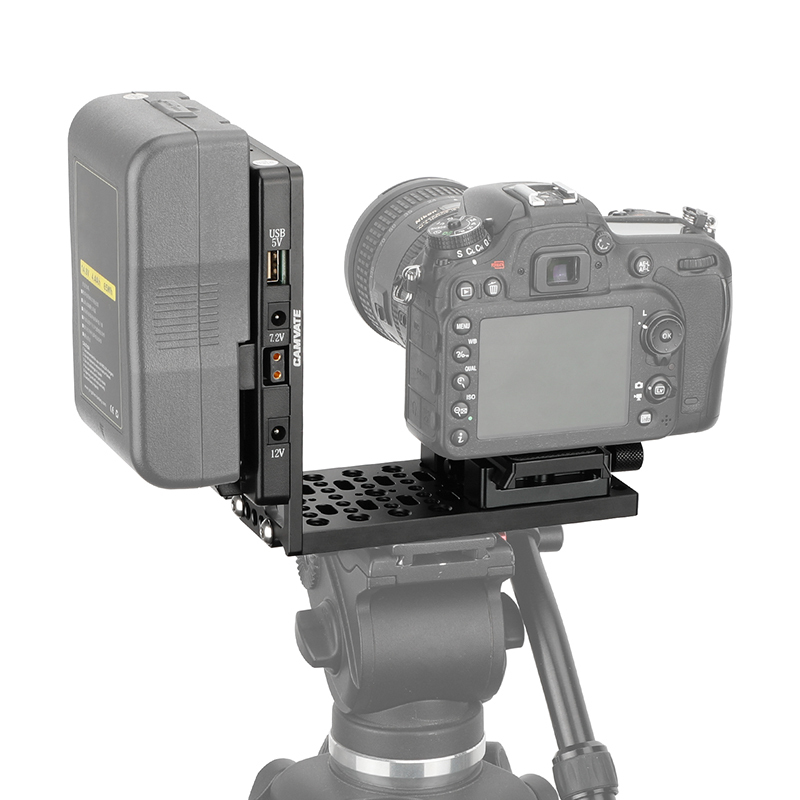

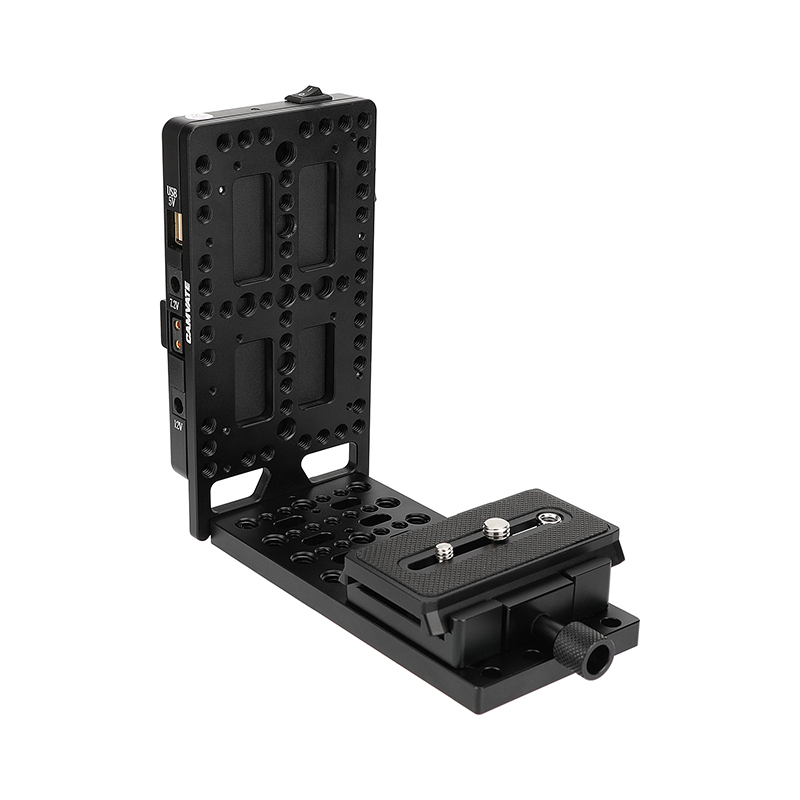

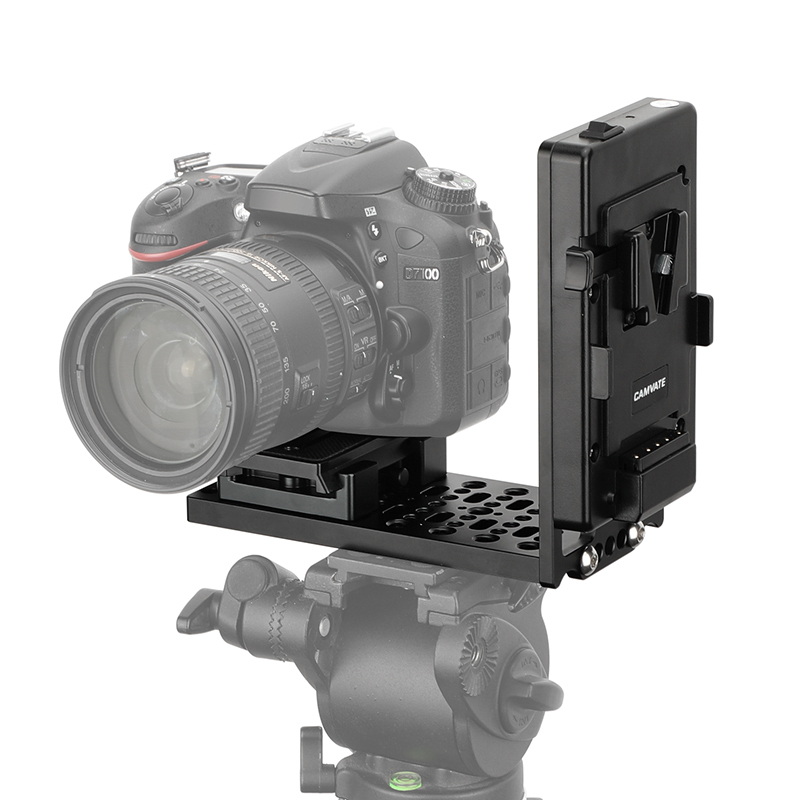

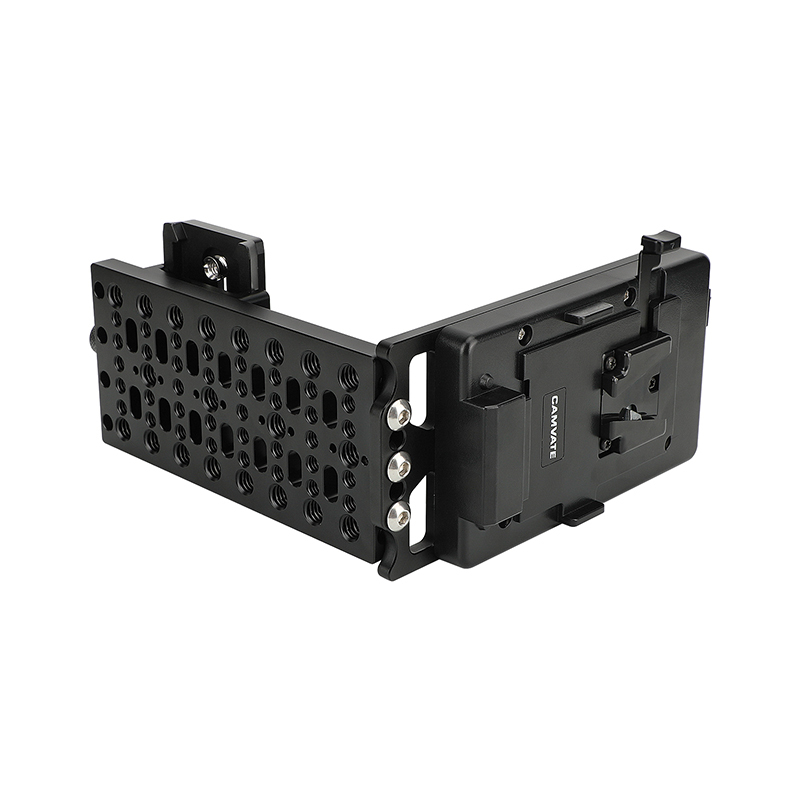

This L-bracket is composed of  of a V-mount power distribution adapter,

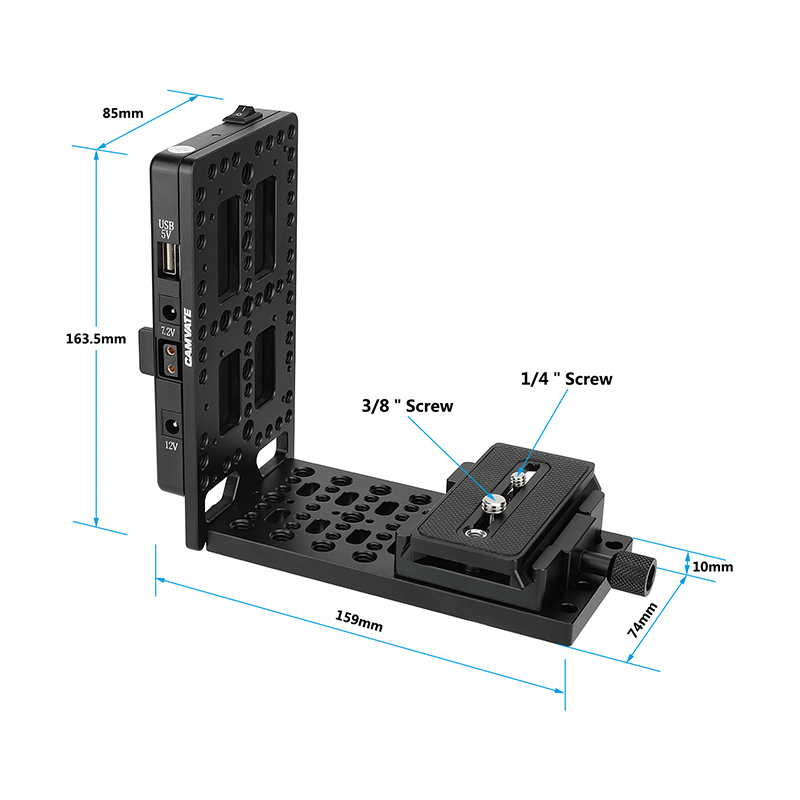

cheese-type plate and Manfrotto-type quick release plate, allowing you to mount a camera to the tripod or rig system, and power a camera and several accessories from a single high-capacity V-mount battery source. It also provides 1/4"-20 and 3/8"-16 threaded holes for attachments of additional accessories. The QR plate features 1/4"-20 and 3/8"-16 tie-down screws for mounting a camera.

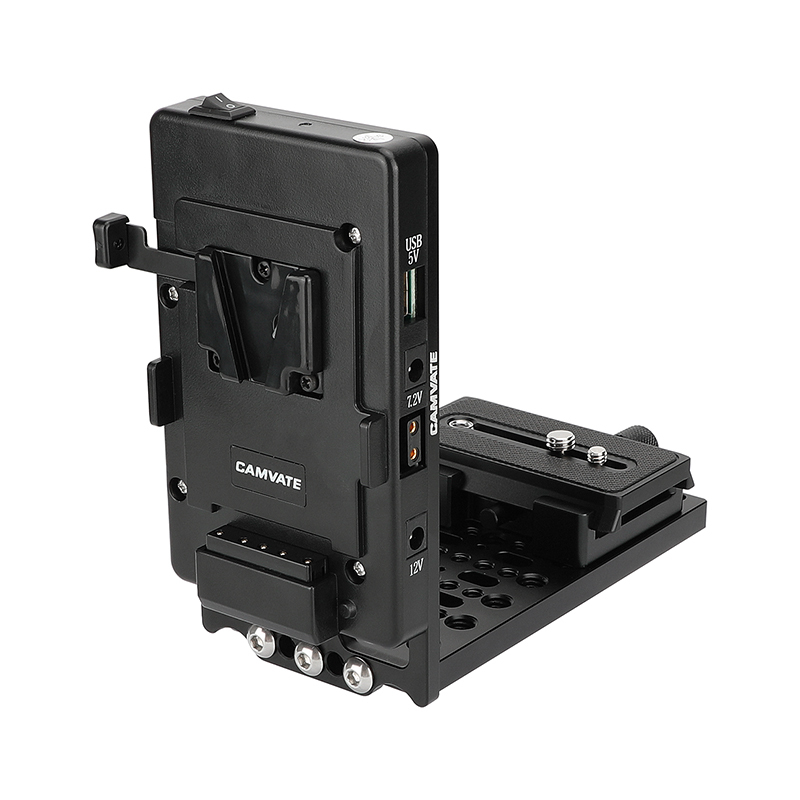

The battery plate offers four power outputs-a 5V USB Type-A, 7.2V DC barrel, 12V DC barrel, and 14.8V D-Tap. The cables include a USB to DC barrel cable compatible with the recorder, H4N microphone , frequency divider; a 7.2V DC barrel cable compatible with many Canon and other cameras; and an LP-E6 dummy battery cable compatible with select Canon cameras (EOS 6D, 7D, 60D, 70D, 5D MarkII).

Net Weight: 838 g

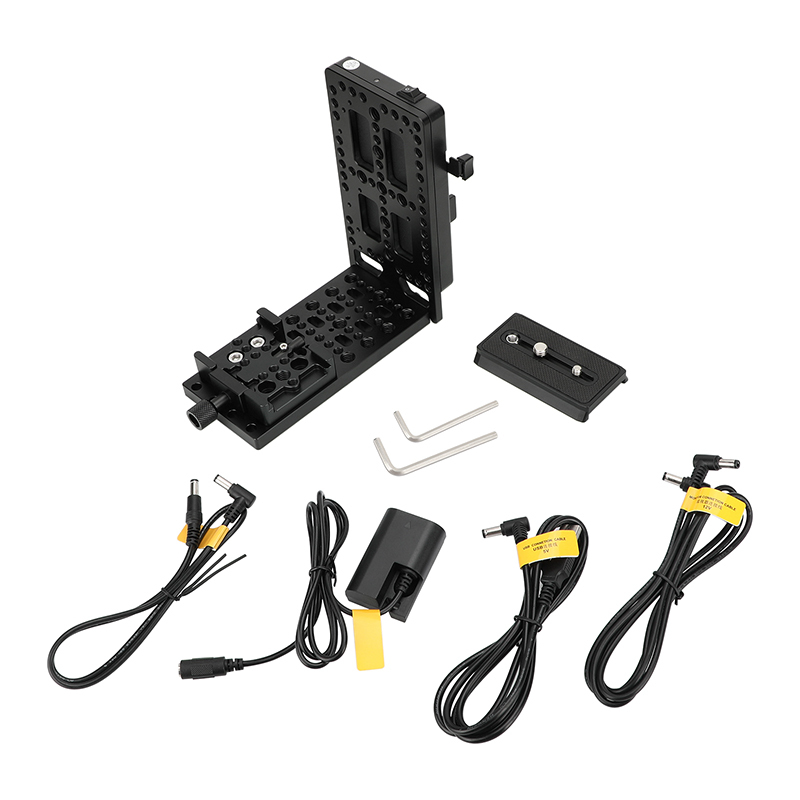

Package Included:
1 x V Mount Power Splitter Adapter
1 x Aluminum Manfrotto-Type QR Plate Pack
1 x Aluminum Cheese-Type Plate
1 x LP-E6 Dummy Battery Pack Adapter to DC 2.1mm Cable
1 x 7.2V DC Cable 2.1mm to 2.1mm
1 x 12V DC Cable 2.5mm to 2.1mm
1 x 5V USB to DC 2.1mm Cable
5 x 1/4"-20 Screw
2 x Allen Wrench


UPC: 792933814822
