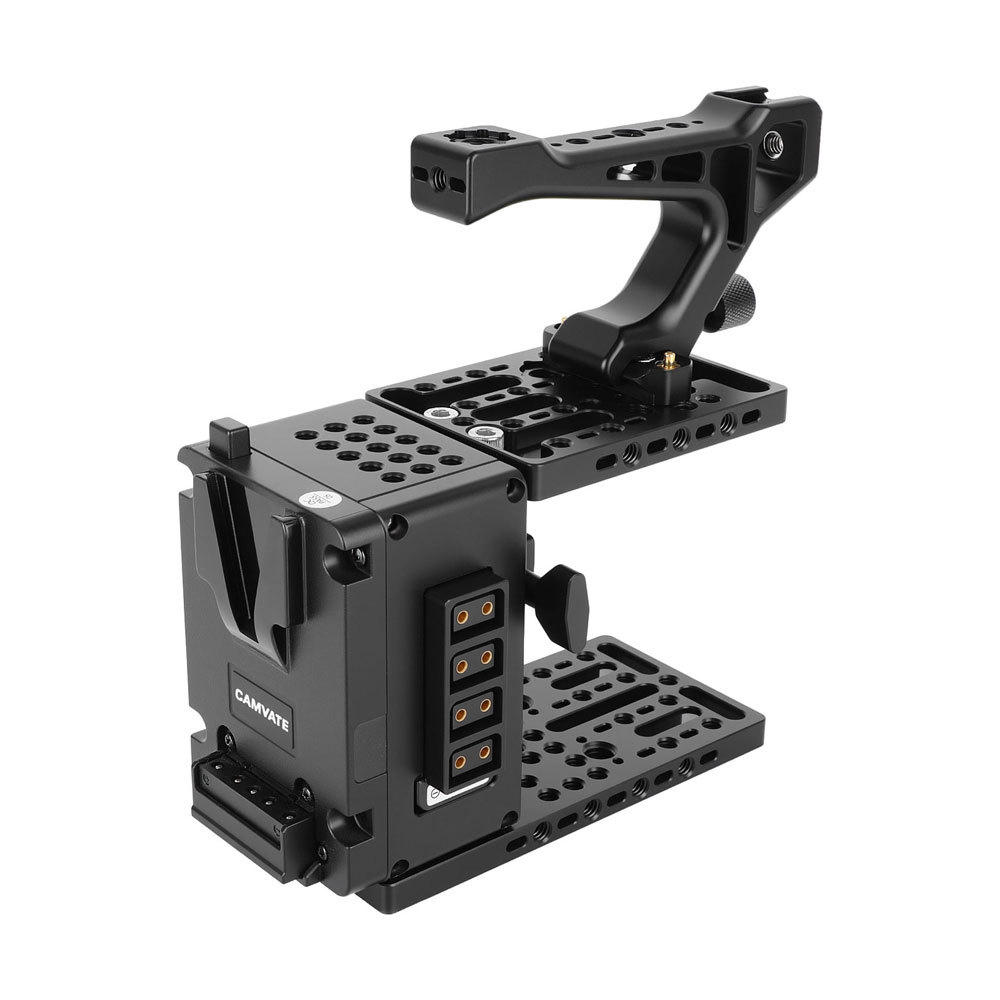

Name: CAMVATE Height-Adjustable Cineback-Style Camera Cage Expansion Module with Top Handle
Brand: CAMVATE
SKU: C3956
Price: 168.6 USD
Availability: InStock

SKU: C3956

0.0 (0 Reviews)

$168.60

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $0.50 OFF ON ORDERS OVER $9.99
GET $2.00 OFF ON ORDERS OVER $19.98
GET $3.00 OFF ON ORDERS OVER $39.00
GET $10.00 OFF ON ORDERS OVER $100.00
GET $25.00 OFF ON ORDERS OVER $200.00
GET $50.00 OFF ON ORDERS OVER $300.00
GET $100.00 OFF ON ORDERS OVER $500.00

13/04/2025/00:00:00 - 31/12/2026/23:59:00

Add to Favorites (0)

1/1

Description

Product Highlights
• Cinerig Base for Cameras Pre-Mounted to a Cage

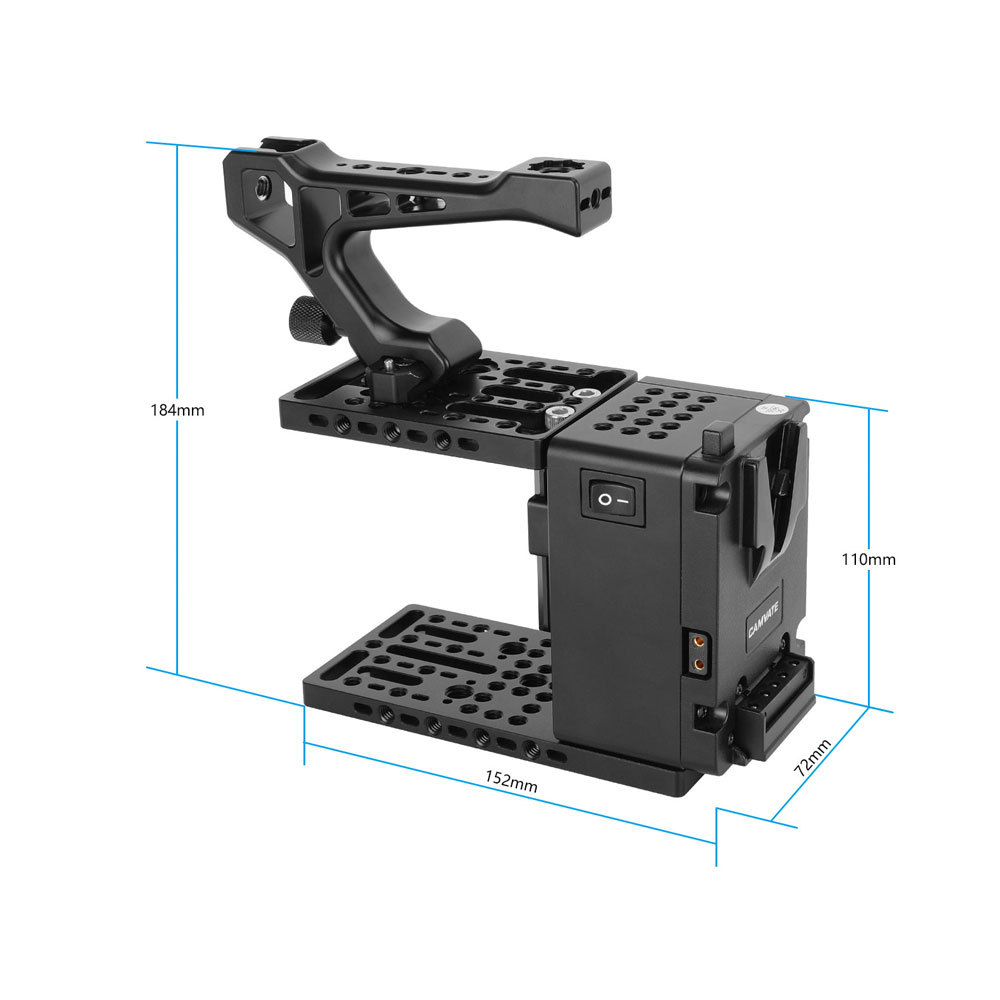

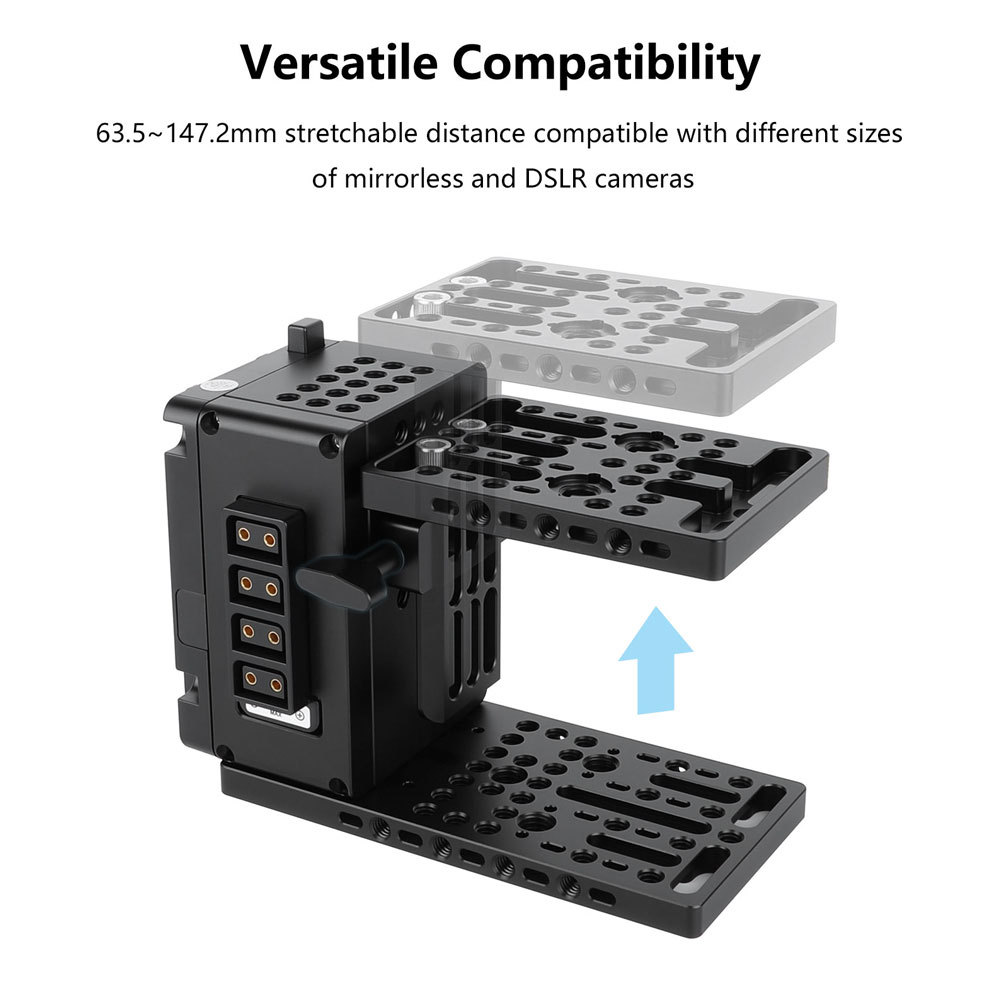

• Height Adjustable from 2.5 to 5.8"
• V-Mount Battery Plate with 1 D-Tap Output
• D-Tap Splitter with 4 Outputs (14.8V, 10A Max Total)

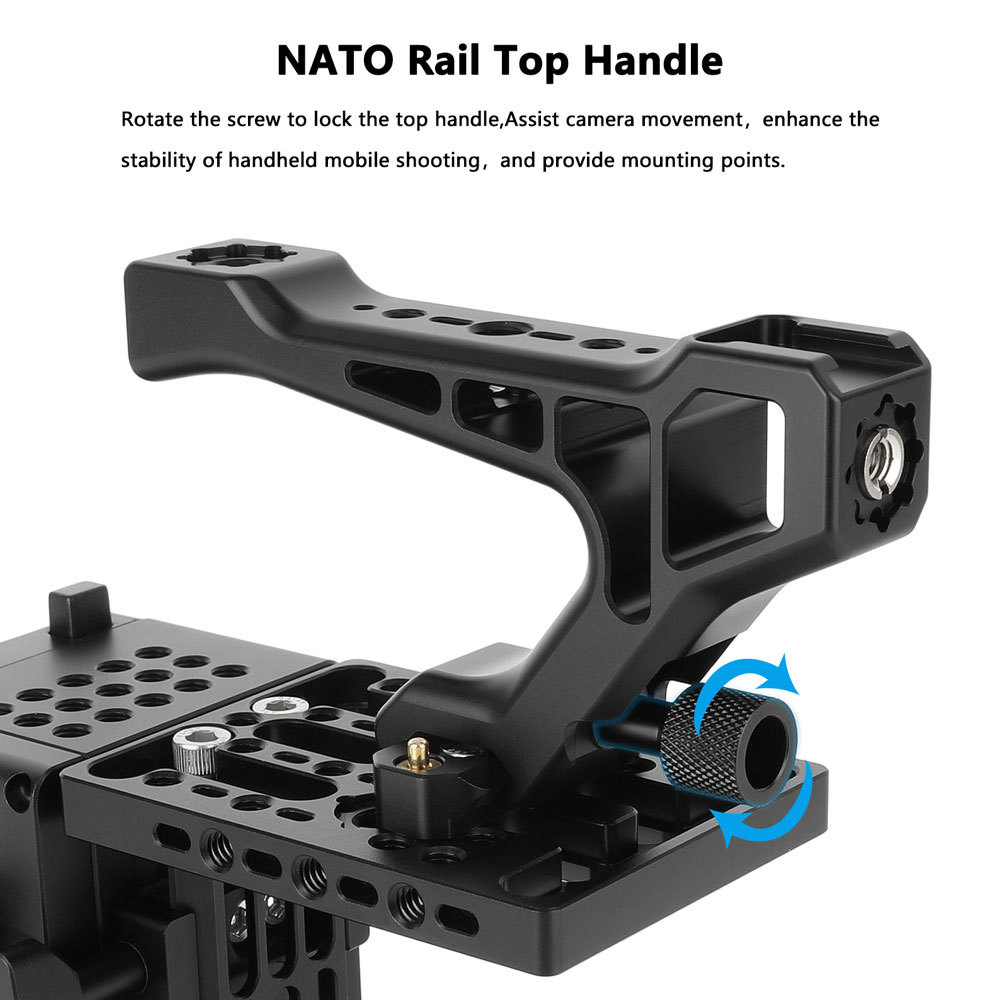

• NATO Top Handle with 2" NATO Rail
• Top and Bottom Cheese Plates

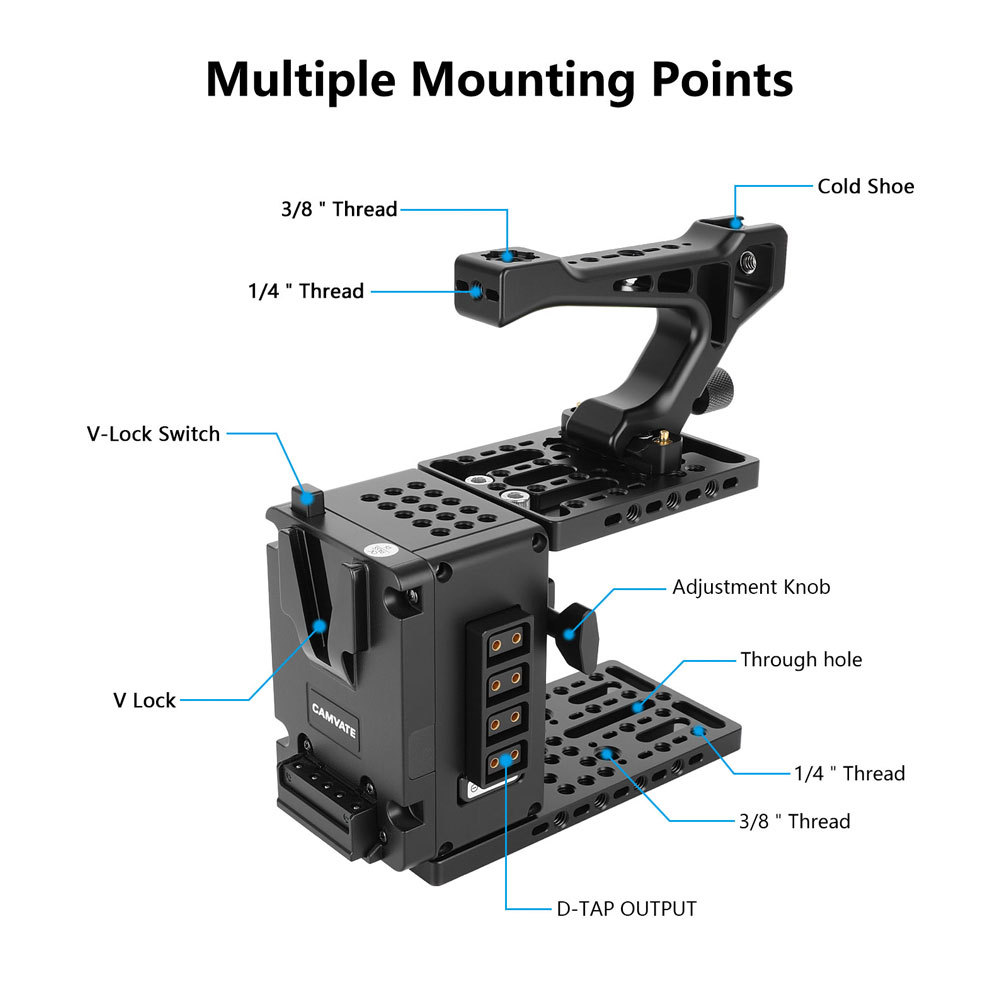

• 1/4"-20 Camera Screw, 1/4"-20 & 3/8"-16 & Anti-Twist Threads
• 1 x Integrated Shoe Mount on Top Handle
• Slotted Design for Wide Compatibility
• On/Off Power Switch
• 3/8"-16 to 1/4"-20 Bushing Adapter Included
• Aluminum & ABS Construction

Product Description

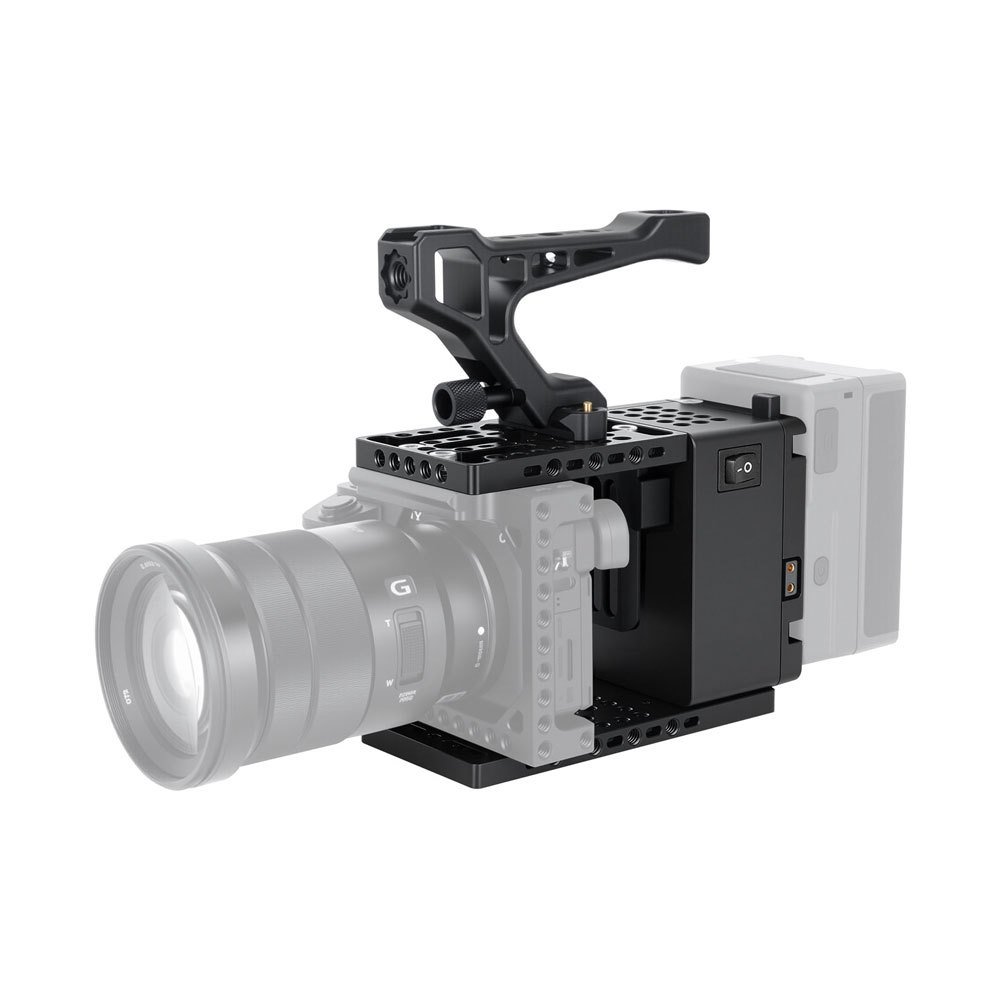

Bolt this cineback-style supply module onto your digital cinema camera, or mirrorless camera, which is pre-mounted to a compatible cage (available separately), for enhanced filmmaking. The height-adjustable rig enables you to adjust it to fit your gear as it can expand from 2.5 to 5.8" in height. You can adjust the height via a thumbscrew. Carry your rig and perform low-angle shots with the dedicatedly designed top handle. The rig features a V-mount battery plate for longer run time, as well as a D-tap splitter with 4 outputs to dispatch power to your camera, external monitor, microphone and other device when combined with a D-tap to dummy battery, D-tap to USB-C with power delivery, or D-tap to DC cable. A power switch is provided to cut down all power delivery from the V-mount battery to avoid unnoticed drain. Incorporating multiple 1/4" countersunk mounting slots, multiple 1/4"-20 and 3/8"-16 threads along with ARRI anti-twist ports, a cold shoe mount, the top and bottom cheese plates and the top handle create a variety of mounting options.

Note that the cameras such as Sony A1 and A7R IV have a fixed tilting screen so the screen will be blocked by this cinema rig. View the menu on an external monitor using info display.

Cage Compatibility
CAMVATE C3518 Full Camera Cage for Sony a7C/a7C II/a7CR C
CAMVATE C3488 Half Camera Cage for Sony a1
CAMVATE C3487 Full Camera Cage for Sony a6700
CAMVATE C3399 Full Camera Cage for Panasonic LUMIX S5 II/IIX
CAMVATE C3345 Full Camera Cage for Nikon Z7 II
CAMVATE C3344 Full Camera Cage for FUJIFILM X-H2S
CAMVATE C3338 Half Camera Cage for FUJIFILM X-T5
CAMVATE C3337 Full Camera Cage for FUJIFILM X-T5
CAMVATE C3259 Half Camera Cage for Sony Alpha 7IV A7M4
CAMVATE C3231 Half Camera Cage for Canon EOS R7
CAMVATE C3152 Full Camera Cage for Panasonic GH6
CAMVATE C3003 Sony ZV-E10 Cage
Other Cage Brands and Models

Net Weight: 928 g

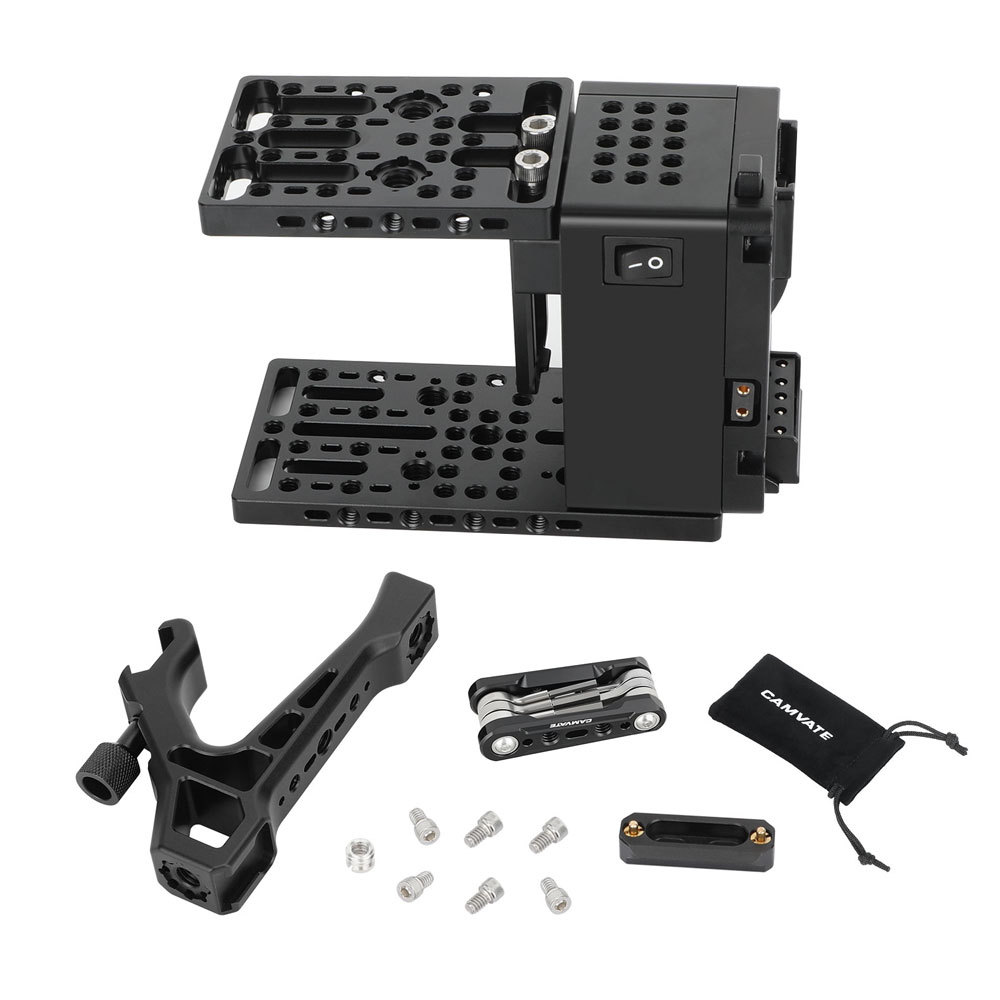

Package Included:
1 x Height-Adjustable Cineback-Style Camera Cage Expansion Module
1 x NATO Top Handle with 2" NATO Rail
6 x 1/4"-20 Mounting Screw
1 x Multifunctional Mini Tool Kit
